Description

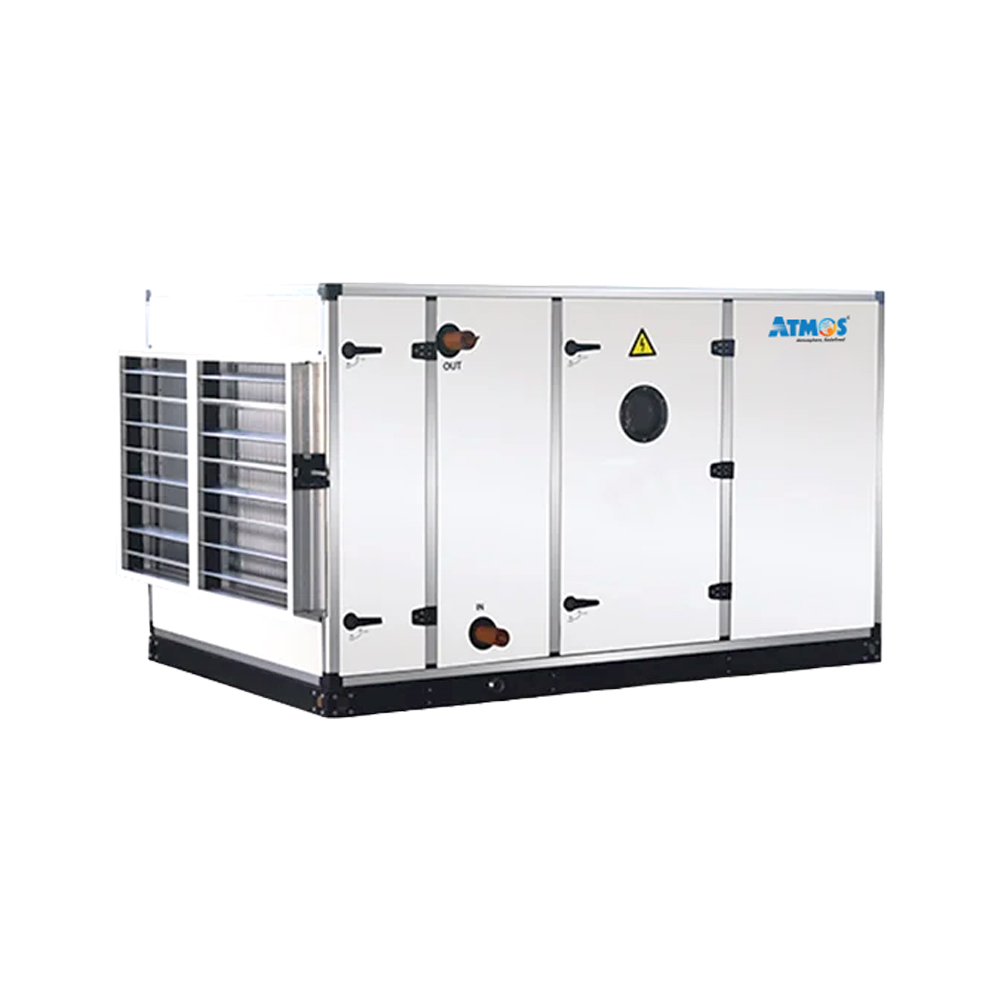

ATMOS HFM-AHU (Horizontal Floor Mounted Air Handling Unit) is designed for large-scale commercial and industrial HVAC applications where powerful airflow and high static pressure are required. Installed on the floor in a horizontal configuration, this unit allows flexible duct connections and easy service access, making it ideal for plant rooms and mechanical floors.

Manufactured with double-skin insulated panels and a robust structural frame, the unit ensures low air leakage, excellent thermal insulation, and long service life. It integrates high-efficiency backward-curved centrifugal fans, precision cooling and heating coils, and multi-stage filtration systems to maintain consistent indoor air quality.

The modular design allows full customization including airflow capacity, filtration grades, humidity control, and energy recovery options. The HFM-AHU supports chilled water, DX systems, heating coils, and can be integrated with PLC-based controls or Building Management Systems (BMS) for smart operation.

Key Features

✔ Horizontal floor-mounted configuration
✔ Heavy-duty double-skin insulated casing
✔ High static pressure centrifugal fan
✔ Multi-stage filtration (Pre + Fine + Optional HEPA)
✔ Chilled water / DX cooling coil options
✔ Electric or hot water heating coil
✔ Stainless steel drain pan
✔ Vibration isolation mounting base
✔ Modular and customizable design
✔ PLC / BMS compatible control system

Benefits

🌬 Powerful air distribution for large spaces
⚡ Energy-efficient operation
🔇 Low vibration and reduced noise levels
🏭 Suitable for heavy-duty commercial & industrial use
🛠 Easy access for maintenance and servicing
🌡 Stable temperature and humidity control
🏢 Ideal for centralized HVAC installations

Recommended Applications

✅ Shopping malls & commercial complexes
✅ Industrial manufacturing plants
✅ Hospitals & healthcare buildings
✅ Office towers
✅ Hotels & banquet halls
✅ Educational institutions
✅ Warehouses & logistics facilities
